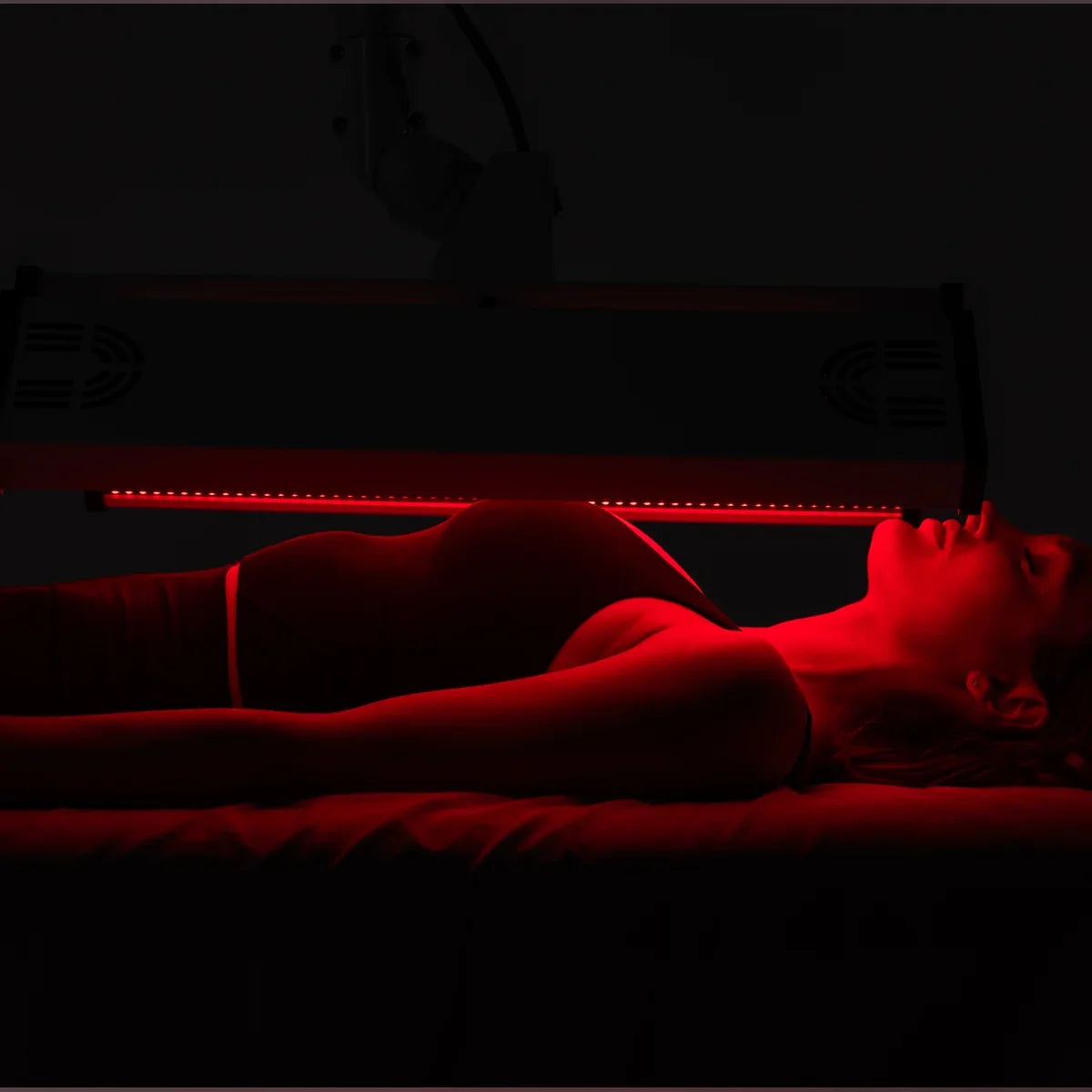

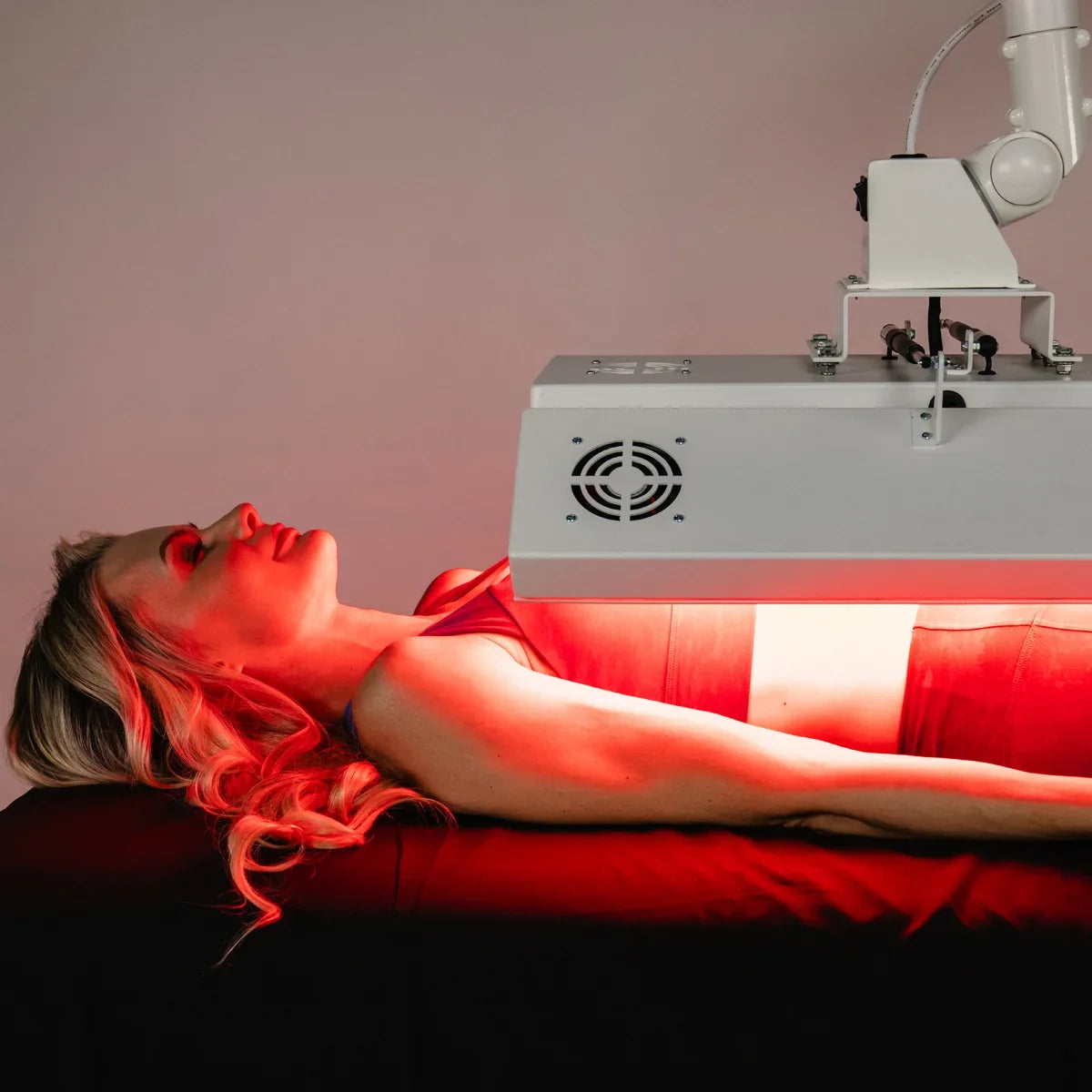

ApolloARC Red Light Therapy Device with Tri-Panel LED Head

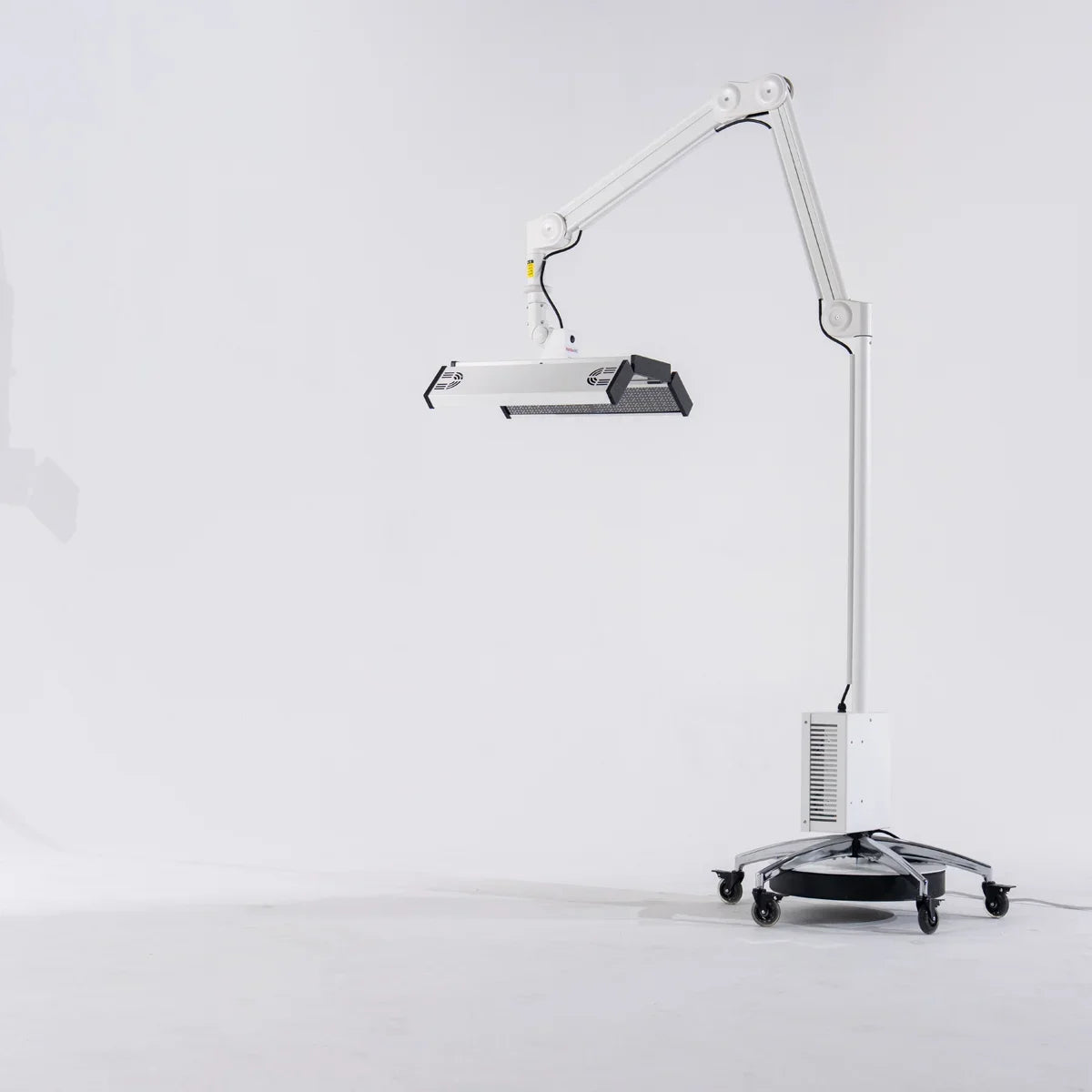

The ApolloARC Red Light Therapy Device is a mobile red light system featuring a counterbalanced articulating arm and tri-panel LED head. Its adjustable design provides flexible positioning, while the weighted caster base allows the unit to be moved between locations.

The device combines red and near-infrared LED wavelengths with a large tri-panel head containing 900 LEDs. A touch keypad provides session controls, including adjustable intensity levels and a built-in timer, while the fan-cooled design helps manage operating temperature.

Key Features

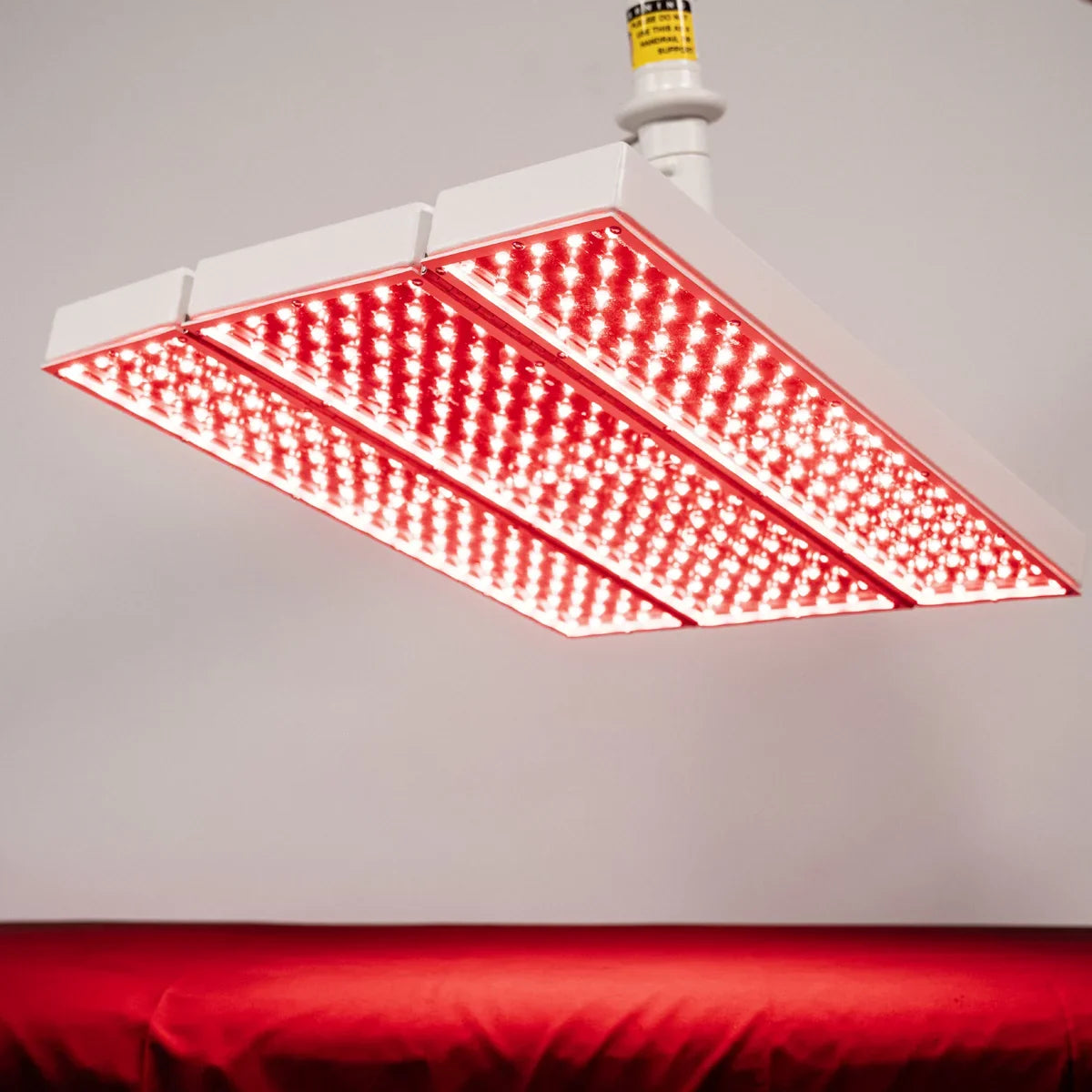

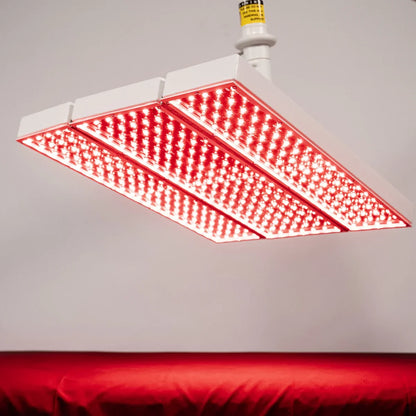

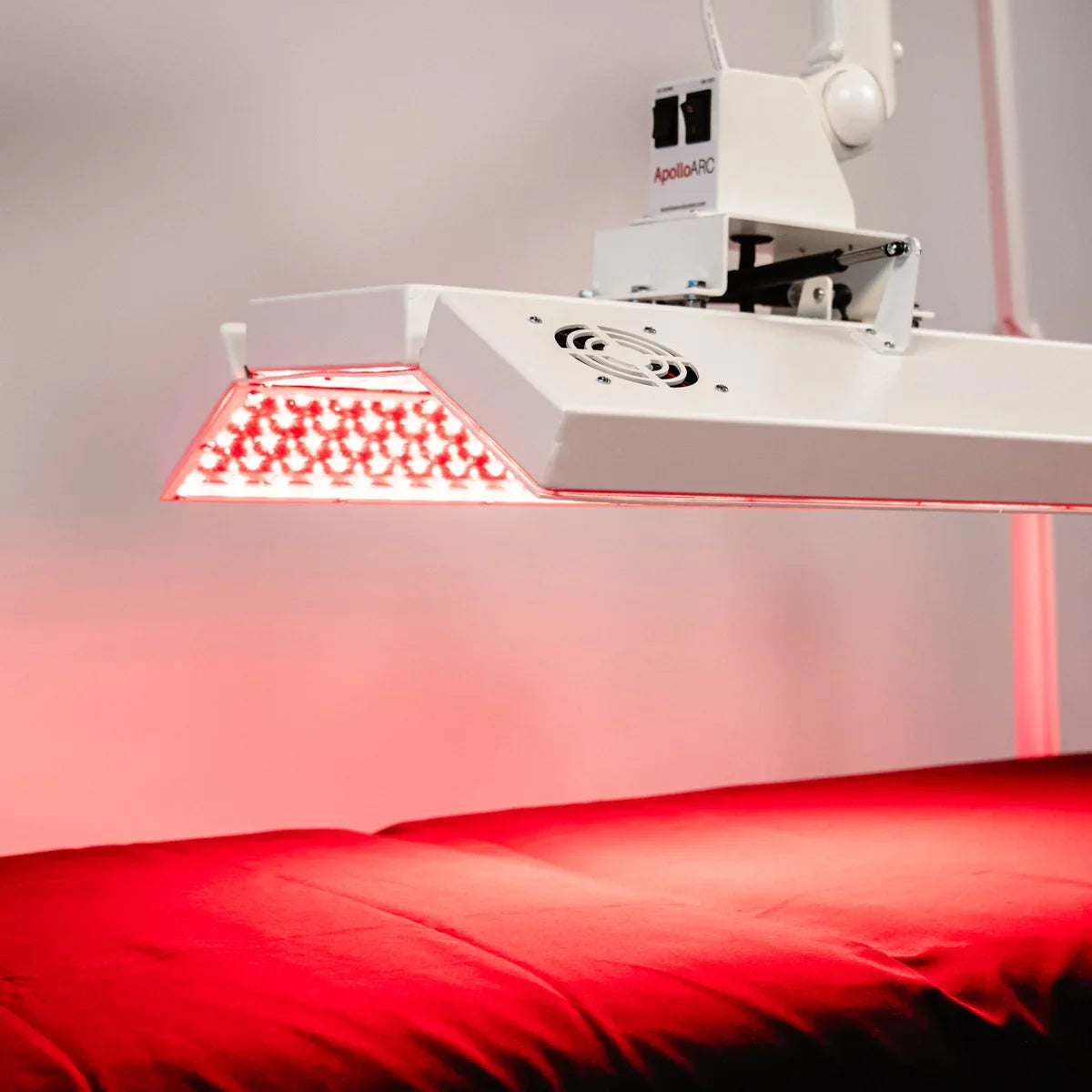

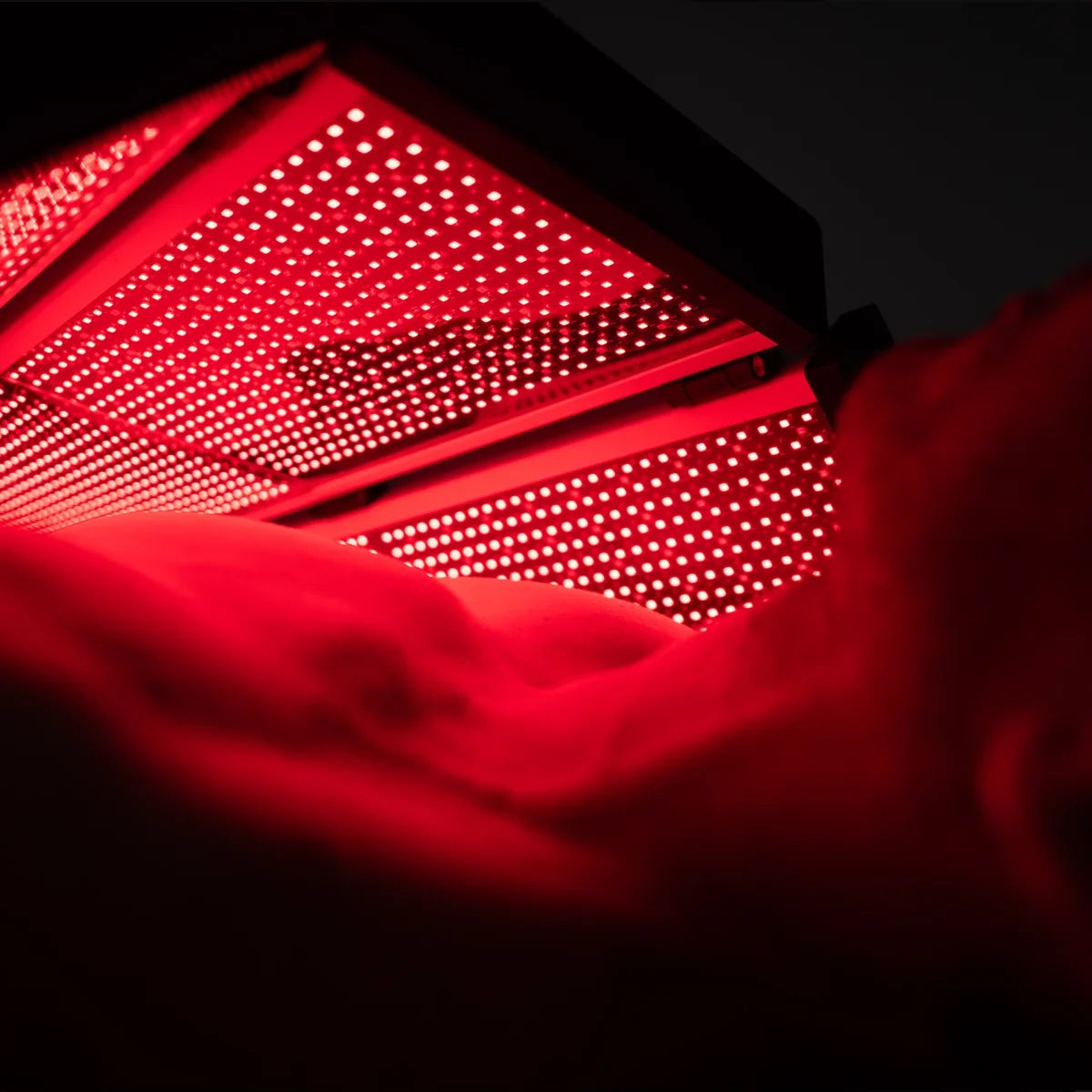

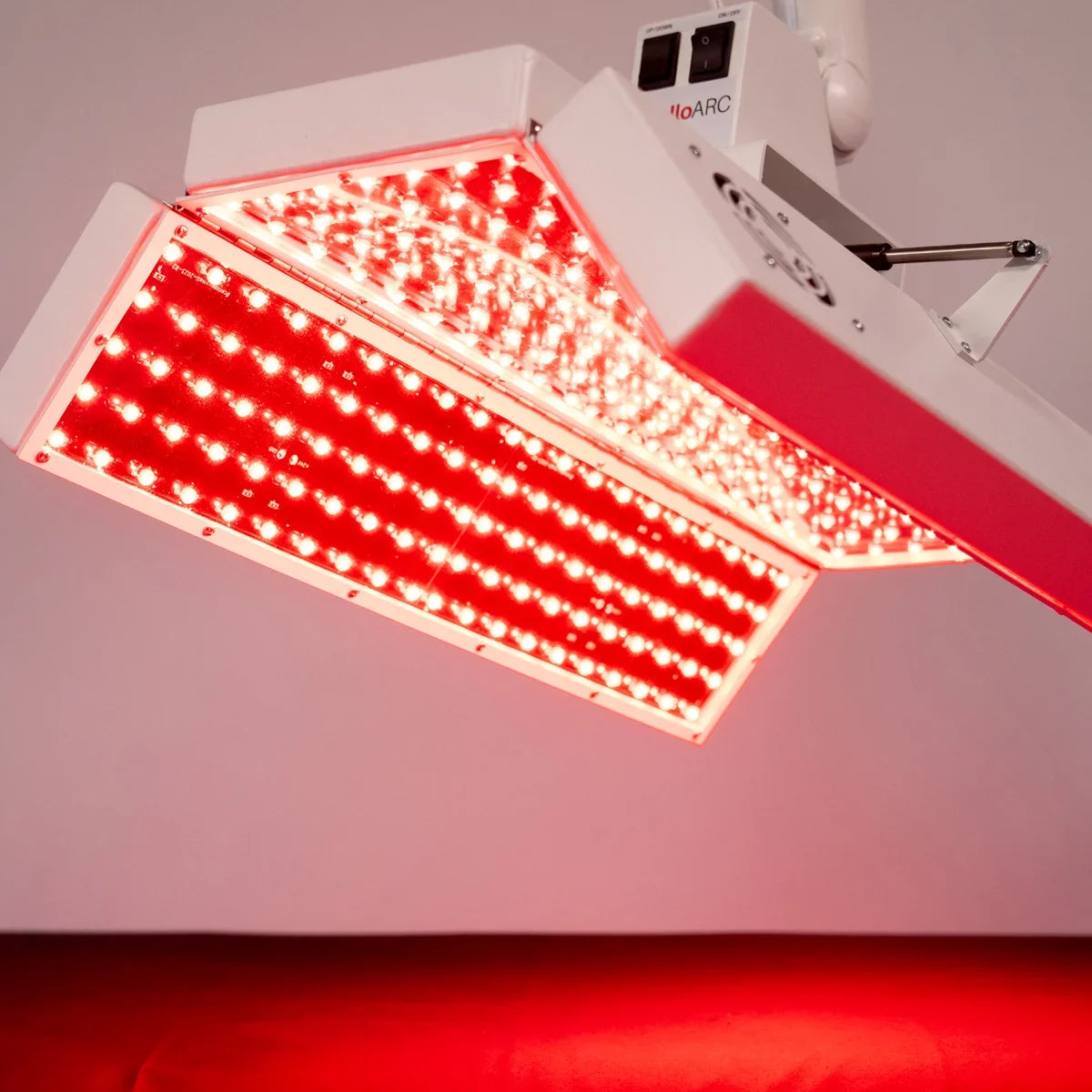

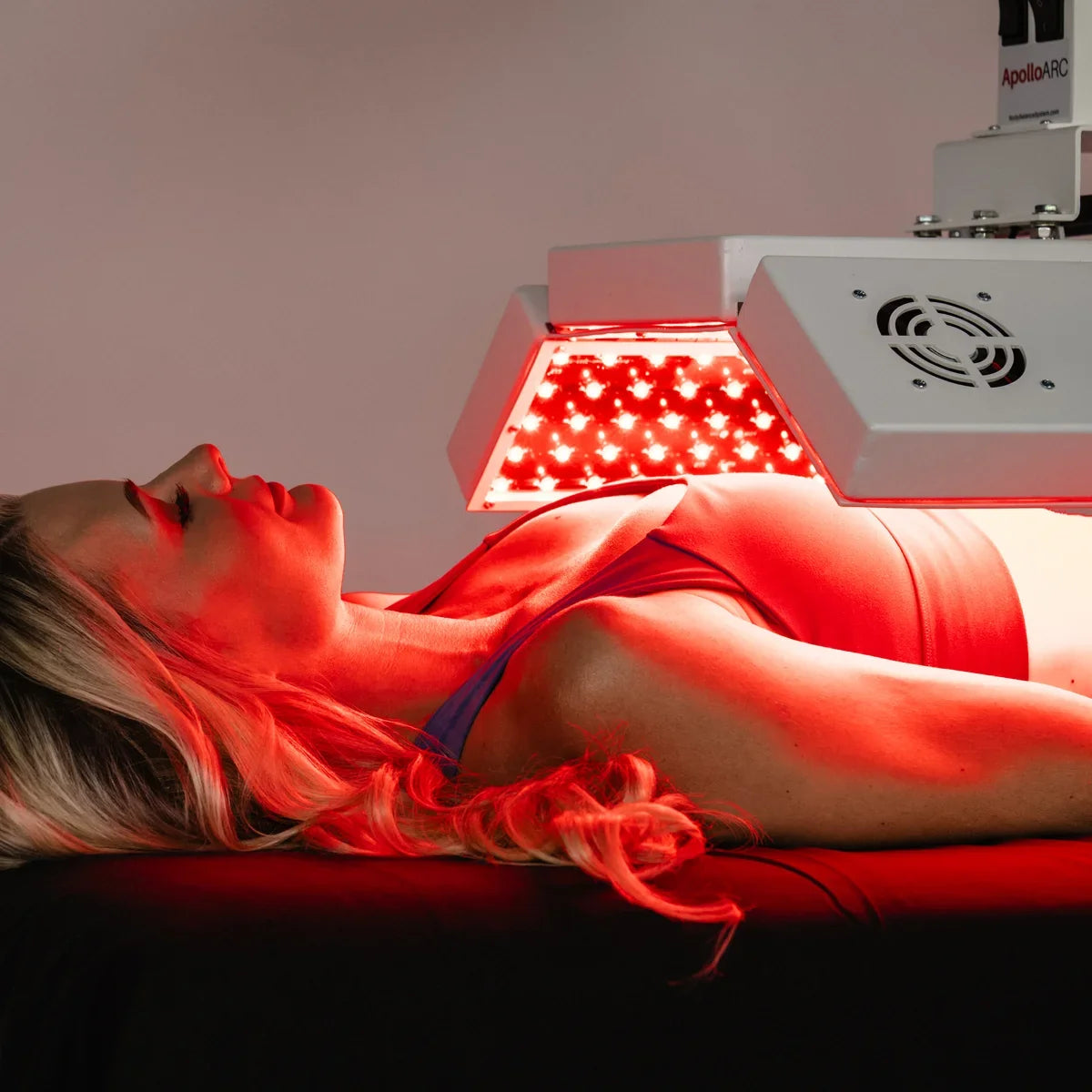

Tri-Panel LED Head: Features 900 high-output LEDs across three panels.

Red Light Wavelengths: Provides 630 nm and 660 nm red light.

Near-Infrared Wavelengths: Provides 810 nm, 830 nm, and 850 nm near-infrared light.

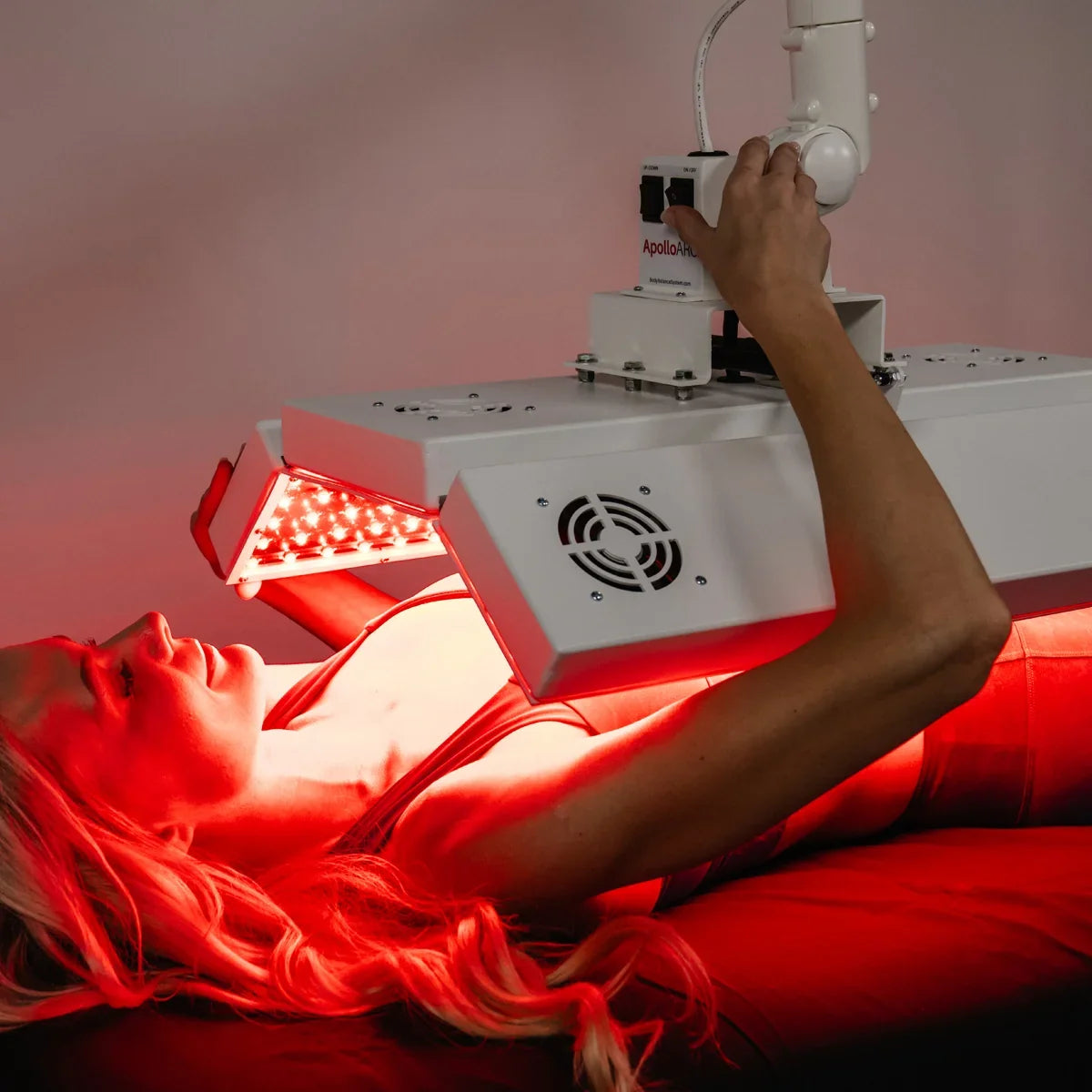

Articulating Arm: Counterbalanced arm design allows flexible positioning of the LED head.

Mobile Base: Weighted steel base features five caster wheels for mobility.

Locking Casters: Caster wheels include locking mechanisms to secure the unit in position.

Cord Wrap: The base includes a cord wrap for cable management.

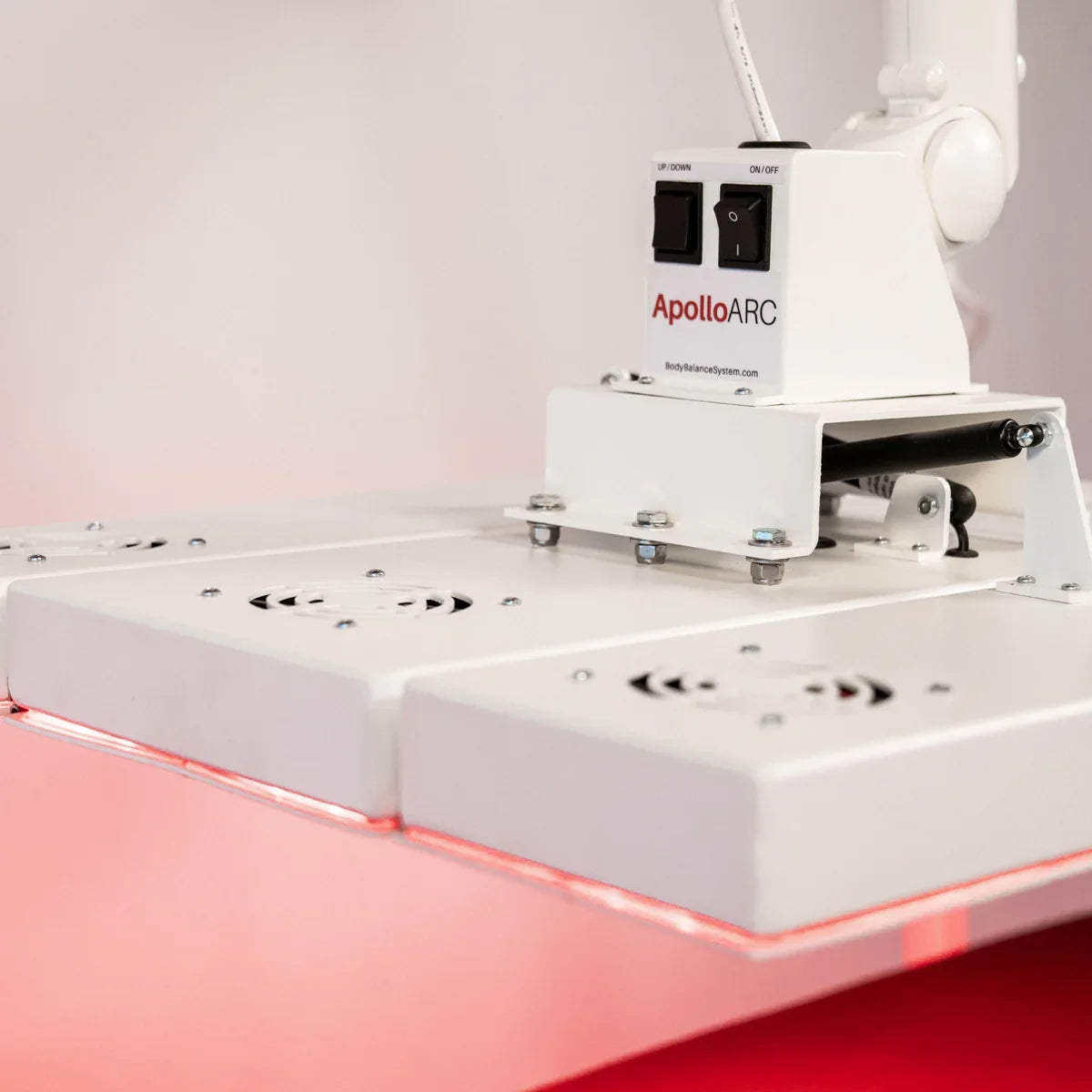

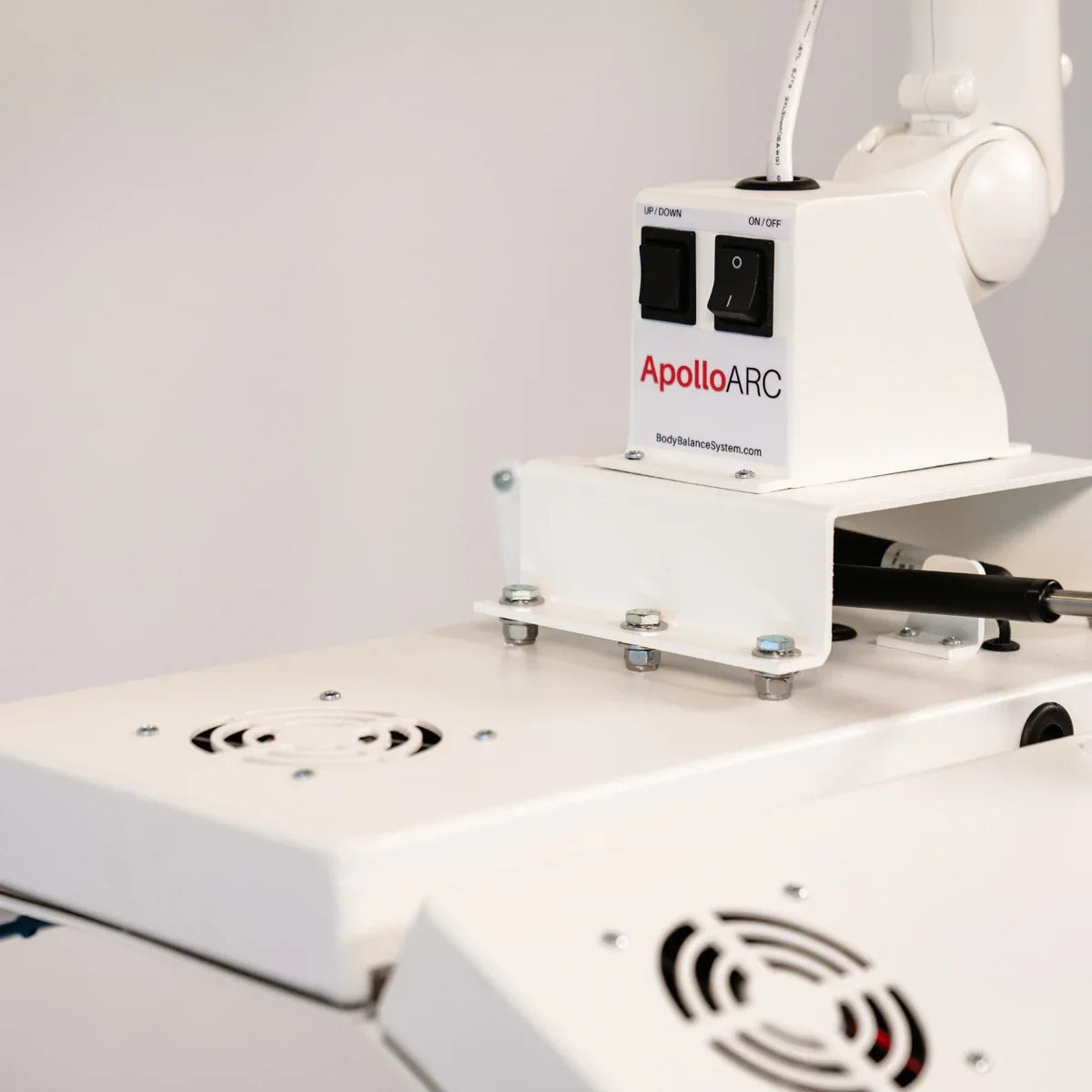

Cooling System: Low-noise fans and deep-fin heat sinks provide thermal management.

Session Timer: Touch keypad includes a 1–20 minute timer.

Intensity Control: Provides 10 intensity levels.

Product Specifications

Head Dimensions: 45 cm × 25 cm.

Height Range: Adjustable from 120 cm to 190 cm.

Base Footprint: 65 cm.

Material: Powder-coated aluminum head, medical-grade arm, and steel base.

Irradiance: Up to 110 mW/cm² at 15 cm.

Effective Area: 60 × 40 cm.

Control System: Touch keypad with timer and intensity controls.

Session Programs

Preset Programs: The device includes face, joint, and full-body session presets.

Auto Shut-Off: Session programs include automatic shut-off.

Maintenance

Daily Maintenance: Wipe the lenses with a dry microfiber cloth after the device has cooled.

Weekly Maintenance: Sanitize touch surfaces and check the caster locks.

Annual Maintenance: Replace fan filters and inspect the power cord and articulating arm joints.

Warranty

Frame and Arm: Three-year warranty.

LEDs and Electronics: Two-year warranty.

Frequently Asked Questions

What wavelengths does the ApolloARC use?

The device provides 630 nm and 660 nm red light, along with 810 nm, 830 nm, and 850 nm near-infrared light.

How many LEDs are included?

The tri-panel LED head contains 900 high-output LEDs.

Can the LED head be repositioned?

Yes. The device features a counterbalanced articulating arm for positioning the LED head.

Does the device have adjustable height?

Yes. The listed height range is 120 cm to 190 cm.

Does the device have a built-in timer?

Yes. The touch keypad includes a 1–20 minute timer.

How many intensity levels are available?

The control system provides 10 intensity levels.
